-30%
Display

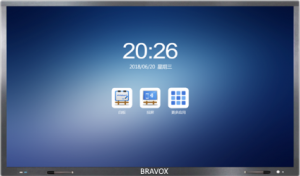

Elite Interactive Display – 65”
Elite Interactive Display – good for education, training, meeting, etc.
$3,680.00 $5,280.00
Six-in-One Interactive Touch Panel, a projector, an electronic whiteboard, a computer, a welcome screen, android player and dual speakers
- 4K Ultra HD resolution
- 10 simultaneous touch points
- into one ultimate education suite.
- Wireless projection (USB dongle for both Windows and Mac OS, AirPlay, Android App)
- Android based with Google Framework and Google Play
- Electronic whiteboard
- Numerous HDMI, VGA, USB, RS232 and multimedia ports
- 50,000 hours of reliable use
- Dual band WiFi support (2.4G and 5G)
- Ambient light sensor
- Mounting bracket
Technical Specifications
| Display | Display Size | 65’’ | 75’’ | 86’’ | 98’’ |
| Effective Display Area | 1440 x 818 mm | 1666 x 945 mm | 1913 x 1084 mm | 2159 x 1215mm | |
| Aspect Ratio | 16:9 | ||||
| Brightness | 400cd/m2 | ||||
| Static Contrast Ratio | 4000:1 | ||||
| Light Source | DLED | ||||
| Viewing Angles | 178ᵒ (V) / 178ᵒ (H) | ||||
| Resolution | 3840 (H) x 2160 (V) | ||||
| Internal Speakers | 2 x 15W | ||||
| Touch | Touch Technology | Infrared | |||
| Touch Point | 10 Point Touch | ||||
| Writing Surface | 4mm Anti-Glare Glass | ||||
| Communication | USB 2.0 | ||||
| Response Time | First Touch: 8ms; Touch continuity: 3ms | ||||
| Location Accuracy | ±2mm | ||||
| Player | CPU | Cortex A53 x 4, 1.5GHz | |||
| 3D GPU | ARM Mali-T720MP2 | ||||
| Operating System | Android 6.0 | ||||
| Memory | 2 GB | ||||
| Storage | 32 GB | ||||
| Wi-Fi | 802.11a/b/g/n; Upstream 2.4G / Downstream 5G | ||||
| Bluetooth | Ver 4.0 | ||||
| Front Interfaces | USB 2.0 (Android/Windows) | 1 | |||
| USB3.0 (Windows Only) | 1 | ||||
| Buttons | Power Button | ||||
| Rear Interfaces | USB 2.0 | 3 | |||
| LAN (RJ 45) | 1 | ||||
| HDMI 2.0 | 3 + 1 built-in OPS | ||||
| DP 1.2a | 1 | ||||
| VGA | 1 | ||||
| VGA Audio | 1 | ||||
| Line In | 1 | ||||
| RS232 | 1 | ||||
| USB Touch | 2 | ||||
| PC | Optional PC | Reserved OPS interface | |||
| Others | Power Consumption | ≤ 250W | ≤ 360W | ≤ 420W | ≤ 420W |
| Standby Power | ≤ 0.5W | ||||
| Voltage Range | 100 – 240 V, 50/60 Hz | ||||
| Dimension | 1524 x 913 x 104 mm | 1765 x 1033 x 111 mm | 1991 x 1177 x 121 mm | 2263 x 1350 x 121 mm | |
| Net Weight | 49 kg | 61 kg | 80 kg | 140 kg | |
| Gross Dimension | 1652 x 1095 x 230 mm | 1871 x 1180 x 225 mm | 2172 x 1355 x 243 mm | 2550 x 1610 x 300 mm | |
